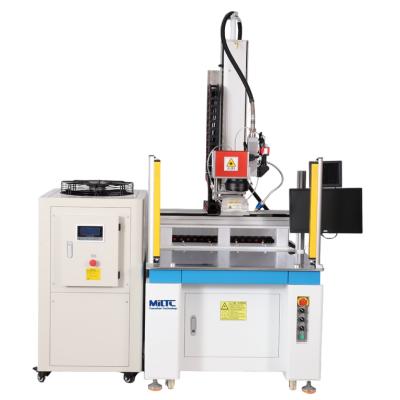

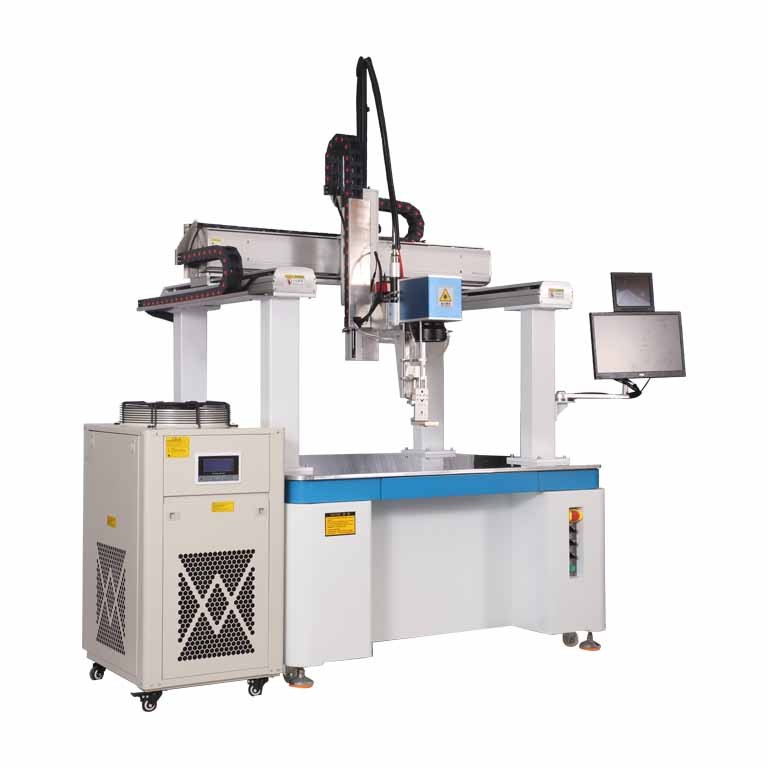

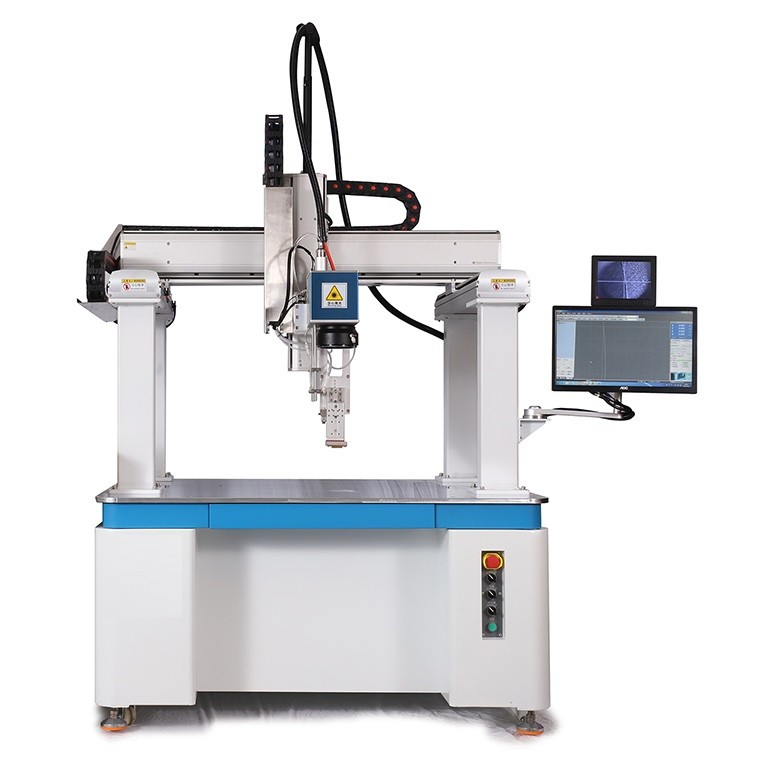

Gantry laser welding machine

Description

Product description

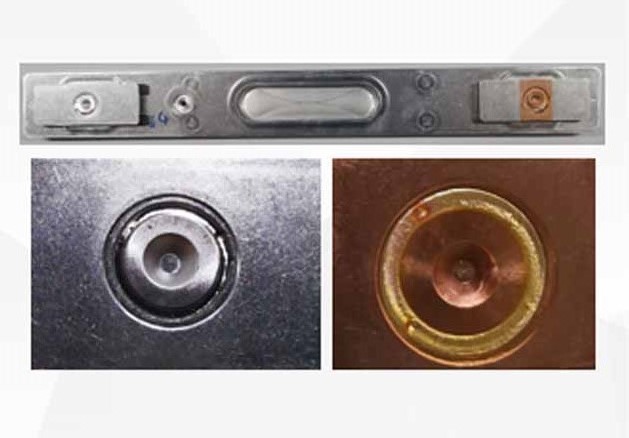

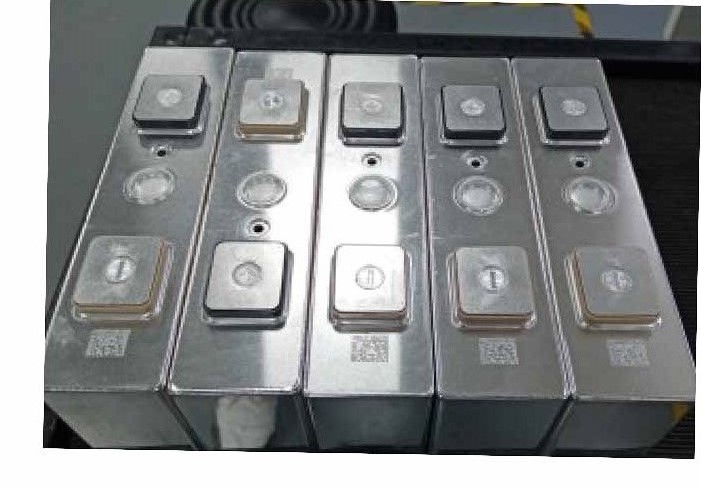

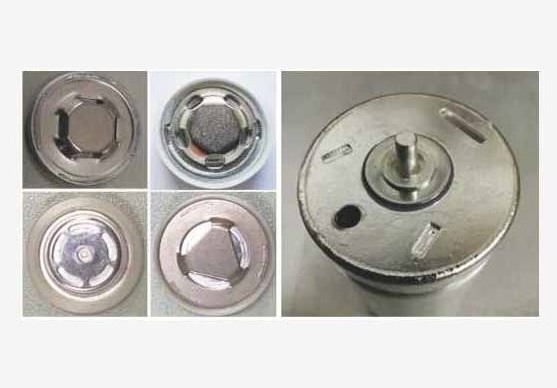

Gantry high-speed galvanometer laser welding machine is used in new energy lithium battery turnirons, copper and aluminum connectors, pole ears, poles, safety hats, explosion-proof valve plates,

 busbar connectors, shell sealing and PACK laser welding.

1, the ideal light source for laser welding: continuous fiber laser, and optional continuous/pulse two laser operation modes;

2, achieve a variety of ideal welding effects: spot welding, patchwelding, overlap welding, etc.;

3. Adopt professional welding software to fully realize the optimal combination of optical, mechanical, electrical and soft, and realize welding automation through expanded I/O ports.

4. Adopt the high-precision operation mode of gantry four-axis linkage, which can realize the welding of general materials, and the welding process equipment is very stable;

5, the configuration of high power galvanometer, higher welding accuracy, greatly improve the welding efficiency;

6, by changing the configuration of the optical path part, the laser output spot can be optimized to achieve the ideal welding effect.

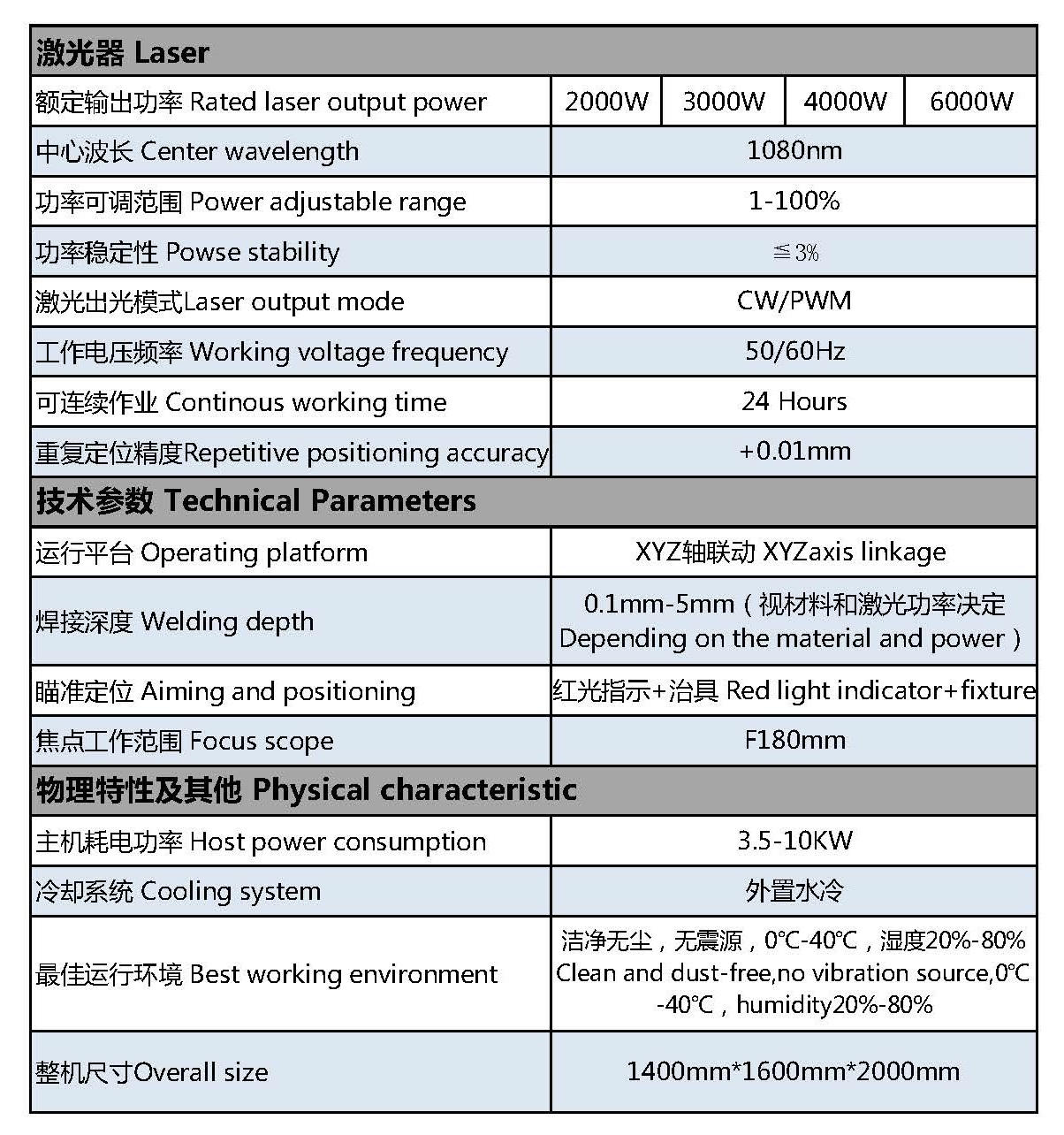

Product parameter
