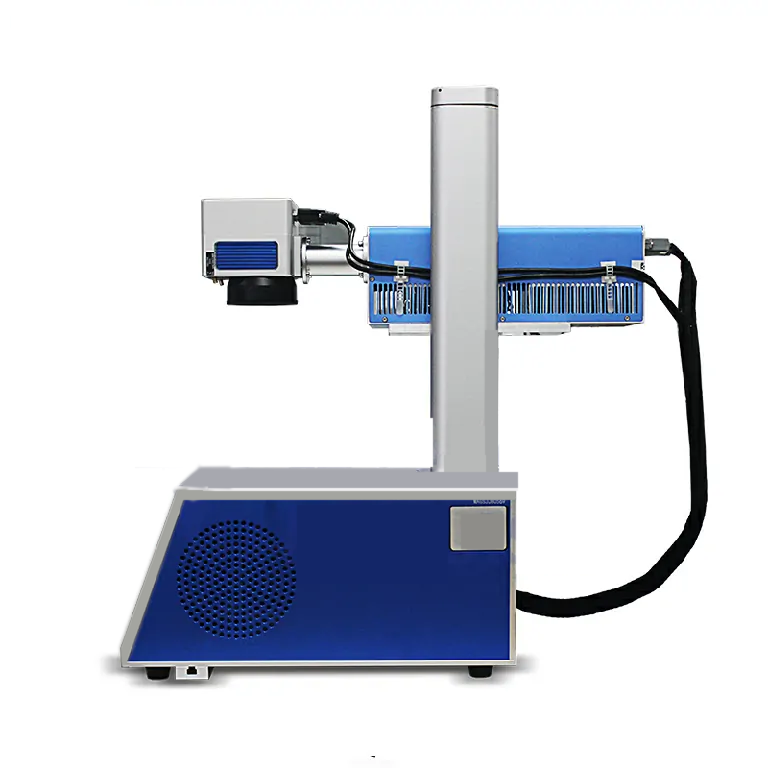

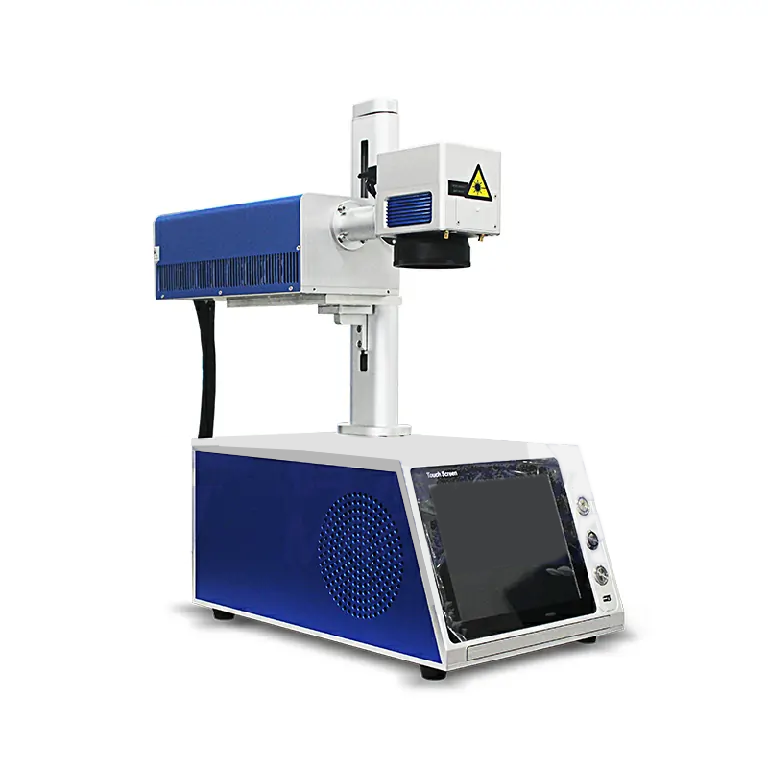

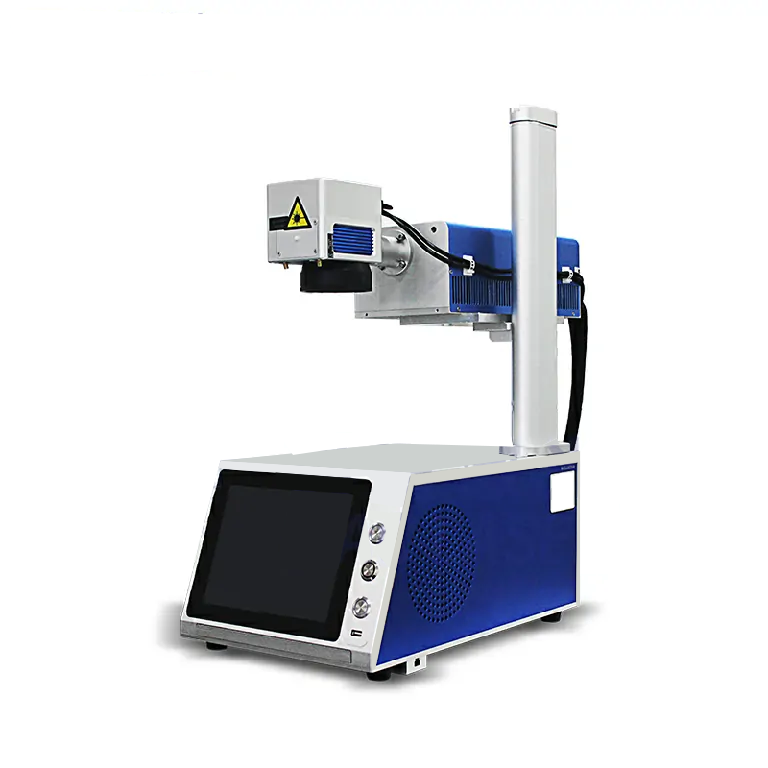

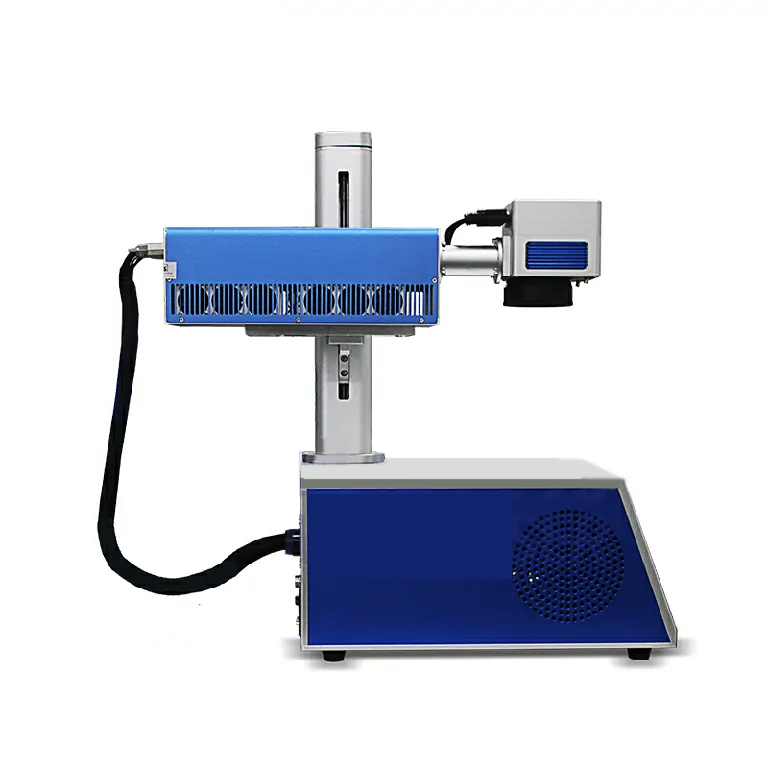

MZF-F series UV inclined laser marking machine

MZF-F series UV inclined laser marking machine

MZF-F series inclined plane intelligent machine belongs to desktop UV laser marking equipment, which is specially developed for high-precision marking, a wide range of applications, and simple, compact and flexible equipment. It is developed using 355nm ultraviolet laser, the material has a high absorption rate of ultraviolet light, and has a wider range of material adaptability. The UV focus spot is very small, the processing heat affected zone is very small, and it is more suitable for hyperfine marking of various materials.

Description

Product description

MZF-F series inclined plane intelligent machine belongs to desktop UV laser marking equipment, which is specially developed for high-precision marking, a wide range of applications,

and simple, compact and flexible equipment. It is developed using 355nm ultraviolet laser, the material has a high absorption rate of ultraviolet light, and has a wider range of material

adaptability. The UV focus spot is very small, the processing heat affected zone is very small, and it is more suitable for hyperfine marking of various materials.

Ultraviolet inclined laser marking machine is used in the high-end market of ultra-fine processing, fine cutting, micro-processing, mainly used in all kinds of glass, liquid crystal screen,

textiles, wafer ceramics, semiconducting silicon wafers, IC grains, sapphire, polymer films and other materials marking and surface treatment.

Product parameter

Model series		MZF-F Series (CRS laser)
Model number		MZF-3F	MZF-5F	MZF-10F
Laser parameter	Laser type	SEAL-355-3	SEAL-355-5	SEAL-355-10W
	Output power	3W	5W	10W
	Beam mass M²	＜ 1.2
	Laser wavelength 2	355 nm
	Pulse frequency	20-150 kHz		40-300 kHz
	Exit beam diameter	0.7±0.1 m m		0.8±0.1 m m
	Output power stability	3%
	Design life	Approximately 20,000 working hours (non-service life)
Optical characteristic	Marking range	100 to 160m m (range optional)
	Engraving depth	≤1m m (depending on power and time)
	Engraving speed	≤10000m m /s
	repeatability	±0.002
	Minimum marking line width	0. 01m m
	Minimum character height	0.03m m
Use environment	Cooling mode	Air cooling		water-cooling
	System power supply	500W / 220V / 50Hz (110V can be connected)
	Temperature, humidity	5~35°， 30% RH 85%
	Oil mist, condensation	Not allow
Other parameters	Operating system	W indows Operating system
	File format	W INDOW S All fonts/fonts for the operating system font library (standard USB input)
	External dimension	Marking machine 300X 460X 615 m m Water tank 250X 340X 24 m m
	Machine weight	About 30kg
Model introduction		The MQ-T sub-series uses CRS Lase r pulsed UV lasers, which have excellent beam quality and perfect spot characteristics. The whole machine adopts the structure design, the optical path and the external drive circuit are integrated into one, which makes the product series have strong anti-interference ability. Optimized and upgraded fully sealed structure, external dust enters.
